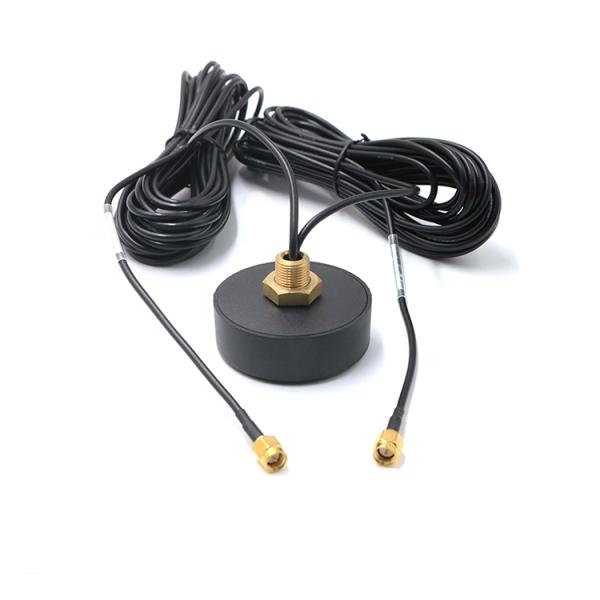

OS Combination Waterproof Screw Mount 2 in 1 or 3 in 1 GPS GSM WIFI 4G Combo Antenna

Name: OS Combination Waterproof Screw Mount 2 in 1 or 3 in 1 GPS GSM WIFI 4G Combo Antenna
Brand: Yetnorson
Price: 5.50 USD

Wholesale OS Combination Waterproof Screw Mount 2 in 1 or 3 in 1 GPS GSM WIFI 4G Combo Antenna from china suppliers

Place of Origin : Guangdong, China

Brand Name : Yetnorson

Model Number : YNX-GPS+GSM-SMA-IP67

Packaging Details : One product with PE bag packaging of gps gsm combo antenna gps gsm combo antenna

MOQ : 100 pieces

Price : $5.50/pieces 100-999 pieces

Type : GPS+GSM combined antenna

Placement : ROOF

OS : no system

Screen Type : no

Resolution : 800*480

Function : CarPlay

Combination : Other

Connection : SMA or customized

Warranty : 1 Year

Use : Automotive

Name : GPS GSM WIFI 4G combo antenna

Frequency Range(MHz) : GPS WIFI GSM 4G

V.S.W.R : ≤2.0

Input Impedance(Ω) : 50Ω

Cable : RG174

Connector Type : SMA

Mounting : Magnetic base

Size : 54mm(D)x 20mm(H)

Cable type : RG174

Mount : screw mount

Contact Now

waterproof screw mount 2 in 1 or 3 in 1 GPS GSM WIFI 4G combo antenna

Antenna	Center Frequency	GPS/WIFI/GSM/4G
	Polarization	RHCP/Vetical
	Gain	3dBic(Zenith)
	V.S.W.R	<1.5
	Impendance	50Ω
	Axial Ratio	3dB(max)
	Dimension	54*20mm
LNA	Gain	26±2dB
	Noise Figure	<1.3
	Filter Insertion Loss	<3dB
	Ex-band Attenuation	12dB@CF+50MHz/16dB@CF-50MHz
	Supply Voltage	2.2~5V DC
	Current Consumption	10~26mA
	V.S.W.R	<2.0
Mechanical	Cable	RG174
	Connector	SMA/MCX/FAKRA or others
	Radome Material	ABS
	Mounting Method	Magnet
Environmental	Operating Temperature	-40°C~+85°C
	Relative Humidity	Up to 95%
	Ingress Protection	IP67
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

OS Combination Waterproof Screw Mount 2 in 1 or 3 in 1 GPS GSM WIFI 4G Combo Antenna

Refund & Replacement

1. We can guarantee the product quality within one years .

2. If parts cannot work, we will return payment or replacement to you.

3. Any items must be returned in their original condition to qualify for a refund or replacement.

4. The buyer is responsible for all the shipping cost incurred.

Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.!!!

GPS +GSM antenna ,gps antenna,gps antenna ,gps antenna,gsm antenna,gsm antenna ,gps antenna

gps+gsm antenna ,gsm antenna ,gps antenna ,gps+gsm antenna ,gps gsm antenna ,antenna

OS Combination Waterproof Screw Mount 2 in 1 or 3 in 1 GPS GSM WIFI 4G Combo Antenna Images
